Nome da marca: | PRECISION |
Número do modelo: | VTS-70 |
MOQ: | 1 |
preço: | $6000 |
Condições de pagamento: | T/T |
Capacidade de abastecimento: | 100/mês |

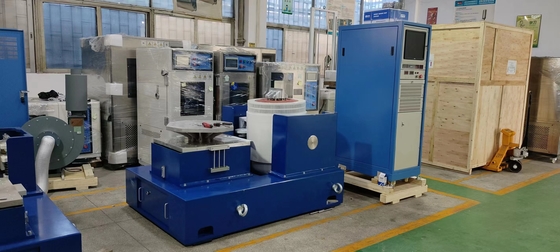

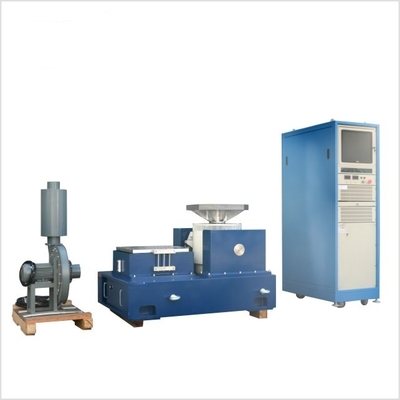

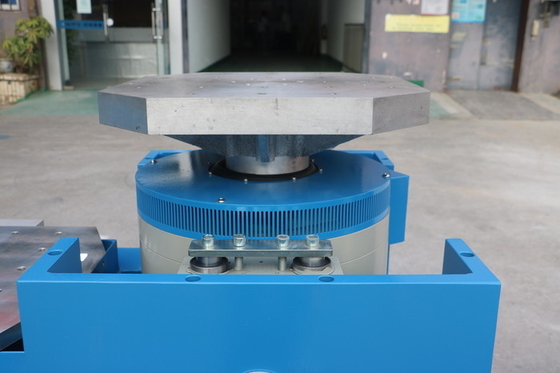

Our X, Y & Z 3-Axis Vibration Test Stand provides an unparalleled solution for comprehensive multi-directional vibration testing, featuring a spacious 600x600mm combined horizontal and vertical test table. This advanced system is engineered to accurately replicate complex real-world vibrational environments, allowing you to rigorously evaluate the durability, performance, and integrity of your products in all three dimensions (X, Y, and Z) without the need for manual re-fixturing. Ideal for industries demanding the highest levels of realism and efficiency in product validation, our test stand ensures your products can withstand the most challenging dynamic stresses.
Technical Specifications:
Rated Sine/ Random/ Shock Force | 1,100 kgf/1.100 kgf/2200 kgf | Armature Mass | 13 kg |
Frequency Range | 5-3500 Hz | Inserts Size (Standard) | M10 |
Max./Continuous Displacement p-p | 51 mm/51 mm | Load Attachment Points (Standard) | 25 |
Max. Velocity | 2.0 m/s | Natural Frequency-Thrust Axis | <3Hz |
Max.Sine/ Random Acceleration | 85/60g | Max. Vertical Load Support | 300 kg |
Armature Diameter | 335 mm | Stray field @152 mm above table | ≤lmT (10 gauss) |
Fundamental Resonance Frequency | 3,000 Hz (nom) ±5% | Dimension LxWxH | 940 mmx715 mm* 780 mm |
Allowable Armature Overturning Moment | 300 Nm | Weight (Uncrated) | 1.000 kg |
Are you ready to elevate your product testing with comprehensive multi-axis vibration simulation? Contact our experts today to discuss your X, Y & Z 3-axis vibration test requirements and discover the ideal solution for your products.
